Ford Performance Engines

393 Cleveland 505HP

393 Clevland 510 HP


MAIN PHOTO SHOWN WITH SOME OPTIONAL EXTRA'S

SEE IN BRACKETS BELOW

510 HP  TOTALLY STREET DRIVEABLE

 RUNS ON PREMIUM 98 PUMP FUEL

FULLY PRECISION MACHINED AND ASSEMBLED

SRP FORGED  PISTONS AND MOLY RINGS      SCAT CRANK AND EAGLE/SCAT  I BEAM RODS  CLEVITE/KING  BEARINGS     MELLINGS OIL PUMP

HIGH VOLUME OIL PAN     FULLY BALANCED     POWERBOND BALANCER        BG CUSTOM PROFILE  BILLET CAM

COMP CAMS HYD LIFTERS          ROLLMASTER/JP ROLLER TIMING CHAIN AND GEARSET       FELPRO GASKETS

CHI  ALLOY  CYLINDER HEADS       EDELBROCK AIR GAP MANIFOLD         COMP CAMS ROLLER ROCKERS

FABRICATED ALLOY VALVE COVERS POLISHED OR BLACK

NEW ALLOY WATER PUMP   ( BILLET PULLEYS ADD $335.00)

QUICK FUEL TECHNOLOGY 750 CARBY       XPRO BILLET DISTRIBUTOR WITH COIL AND LEADS

BLOCK MACHINED FOR ONE PIECE REAR SEAL TO PREVENT OIL LEAKS COMMON ON STROKERS WITH TWO PIECE SEAL

    TOTALLY ENGINEERED AND MACHINED IN HOUSE ON PRECISION EQUIPMENT BY PROFESSIONAL ENGINE  BUILDERS

FITTED TO OUR IN HOUSE SUPERFLOW  902 ENGINE DYNO, RUN IN, FUEL AND IGNITION CURVES OPTIMIZED AND  ASSURED OF NO LEAKS.

ONCE RUN IN, POWER OUTPUT MAXIMIZED.

DYNO SHEET AND SPECS SHEET SUPPLIED.   YOUR WELCOME TO COME AND VIEW THE DYNO SESSION

A QUALITY PROVEN COMBINATION . NO GUESSWORK

(ICE IGNITION UPGRADE ADD $755.00)      (MSD IGNITION ADD $615.00)

                                       ( ROBBIE MAC USA MECHANICAL FUEL PUMP ADD $ 565.00 ) (the only quality adequate pump available)

$18,490.00

We have several options for your application

Other Packages are also available to suit your requirements

Call to discuss your individual needs

.........................................

clevo oil leak fix

One piece rear main seal conversion
is an absolute neccesity to prevent oil leaks on stroker clevos.

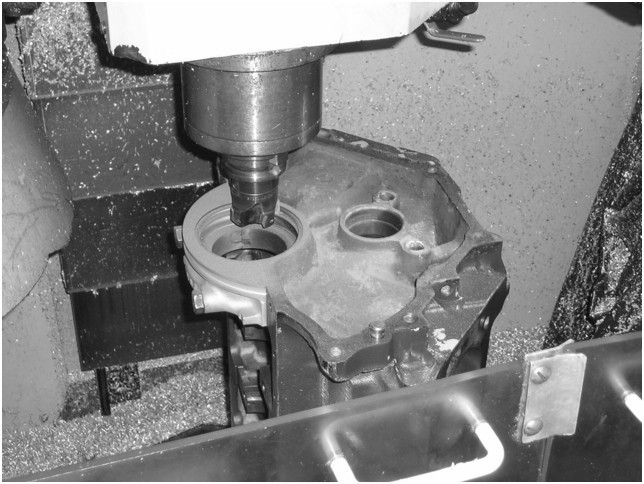

A picture of  a conversion being performed in our cnc mill

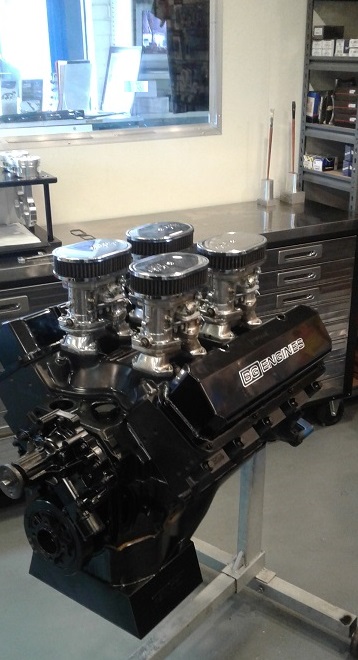

webbers

Options, Options, Options.. Ask us!

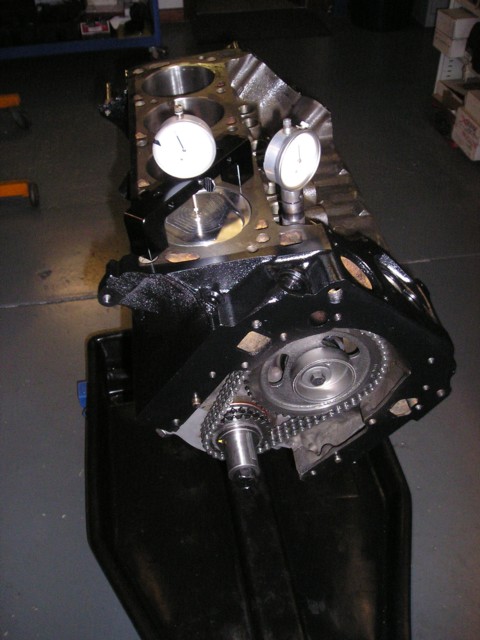

TDC

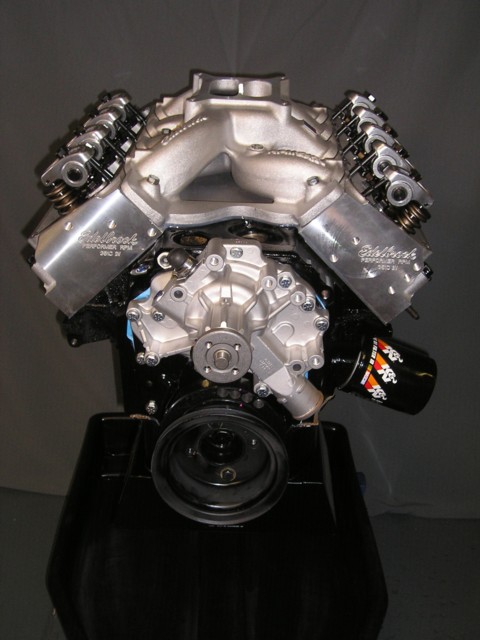

Ford Cleveland

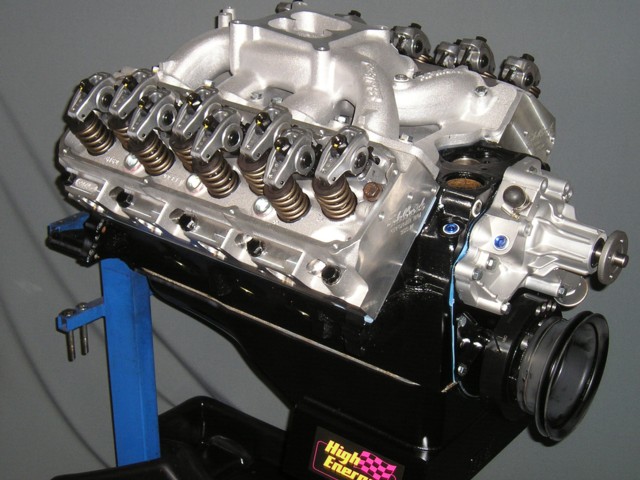

Clevo with rocker gear

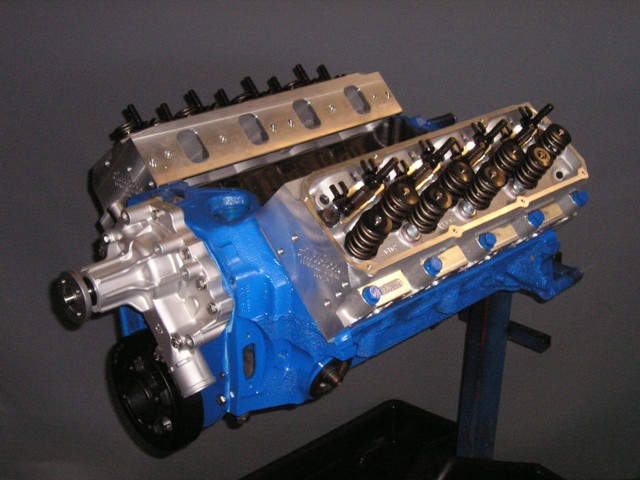

blue with rockers

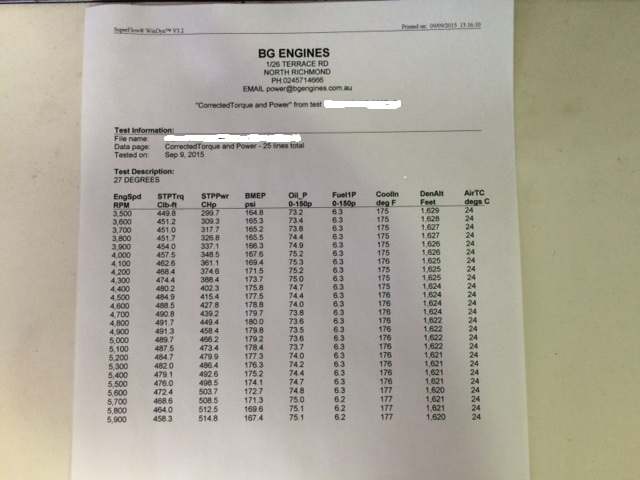

Dyno sheet

Typical Dyno sheet
